Ball End Vertical Type Cutter CNC Cutting Tools for Steel Products 2 Flutes or Customized
Description
The cemented carbide / hard alloy / kentanium is mainly sintered with tungsten carbide powder, cobalt as a binder. With the increase of cobalt content, the toughness of the material increases, but the hardness decreases. By adjusting the content of cobalt, tool materials suitable for different environments can be obtained. It is widely used in high-speed cutting tools with good rigidity and simple edge shape. With the development of technology, complex cutting tools are gradually expanding their applications.
Quick Details
According to the bottom surface,cutting tools are divided into Square-end cutters, ball nose end cutters, Corner raduis-end cutters. The Square-end cutters are used for machining flat parts,Corner raduis end cutters are used for chamfered products, and the ball-end cutters are used for machining 3D curved surfaces of products.
| materials | hard alloy | tapy | Ball-end |
| treatment | Temperature / Oxidation resistant PVD coating | Flutes | 2 Flutes |
| tolerance | 0.001mm | ODM / OEM | welcome |
| Suitable material for cutting | Carbon steel | Alloy steel | Prehardened steel | stainless
steel | cast
iron | Hardened steel |
| HRC~55° | HRC55~65° |
| good | good | Best | gOOD | Best | Best | good |
Size

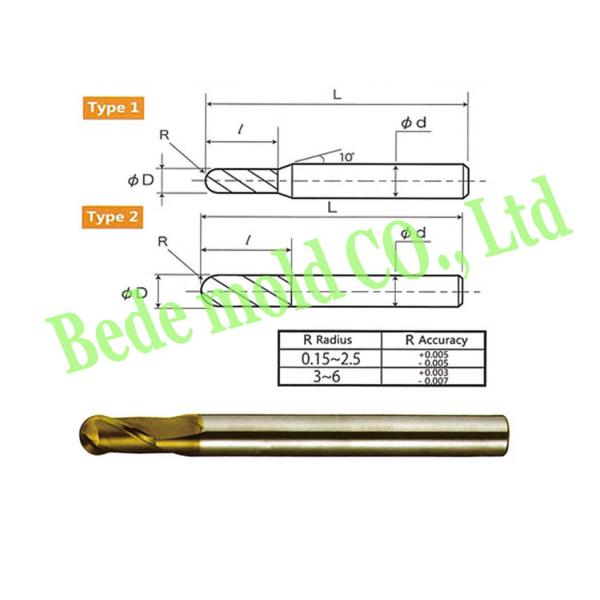

The following Size cutter was in stock, can be sent in 3 work days after payment. If it will be customized, plz tell us the values of following pictrue show or sent a drawing to us, angthing else, we will do it for you.
| Type | R | D/mm | l/mm | L/mm | d/mm |
| 1 | 0.15 | 0.3 | 0.45 | 50 | 4 |
| 1 | 0.15 | 0.3 | 0.45 | 50 | 6 |
| 1 | 0.2 | 0.4 | 0.6 | 50 | 4 |
| 1 | 0.2 | 0.4 | 0.6 | 50 | 6 |
| 1 | 0.3 | 0.6 | 0.9 | 50 | 4 |
| 1 | 0.3 | 0.6 | 0.9 | 50 | 6 |
| 1 | 0.4 | 0.8 | 0.2 | 50 | 4 |
| 1 | 0.4 | 0.8 | 0.2 | 50 | 6 |
| 1 | 0.5 | 1.0 | 1.5 | 50 | 4 |
| 1 | 0.5 | 1.0 | 1.5 | 50 | 6 |
| 1 | 0.75 | 1.5 | 2 | 50 | 6 |
| 1 | 1.0 | 2 | 3 | 50 | 6 |
| 1 | 1.5 | 3 | 4.5 | 60 | 6 |
| 1 | 2.0 | 4 | 6 | 70 | 6 |
| 1 | 2.5 | 5 | 7.5 | 80 | 6 |
| 2 | 3 | 6 | 9 | 90 | 6 |
| 2 | 4 | 8 | 12 | 100 | 8 |
| 2 | 5 | 10 | 15 | 100 | 10 |
| 2 | 6 | 12 | 18 | 110 | 12 |
| 2 | 8 | 16 | 24 | 140 | 16 |
Treatment

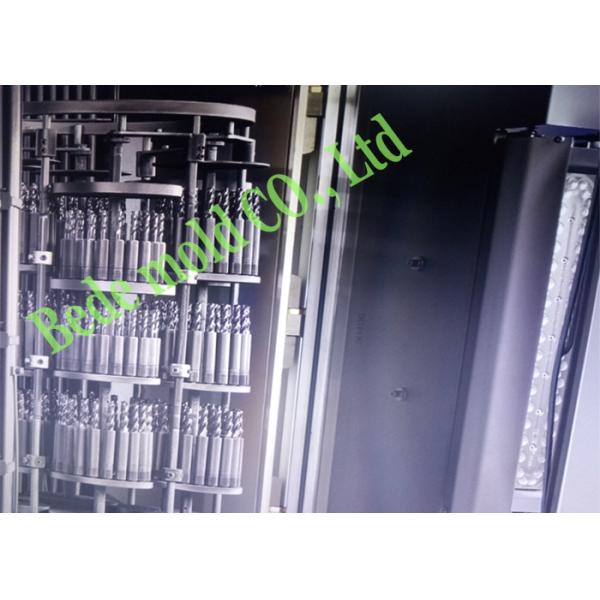

Physical Vapor Deposition (PVD) is an advanced surface treatment technology widely used in the world. Its working principle is that the gas or evaporated substance is partially ionized by gas discharge in vacuum, and the evaporation or its reactants are deposited on the substrate while the gas ions or the evaporated substance ions are bombarded.
A cutter tool treat by PVD, the friction coefficient is obviously reduced, which greatly improves the temperature resistance and service life of the cutter.
Advantage
1,Professional tool design team.
Tell us your requirements, the design, production, testing and transportation, we will do it all by ourselves.
2,The cemented carbide materials come from a Japan's famous brand
High quality raw materials ensure stable quality of products.
3,The six-axis CNC belt grinding machineding from Germany
Advanced production equipment ensures fine machining of products.

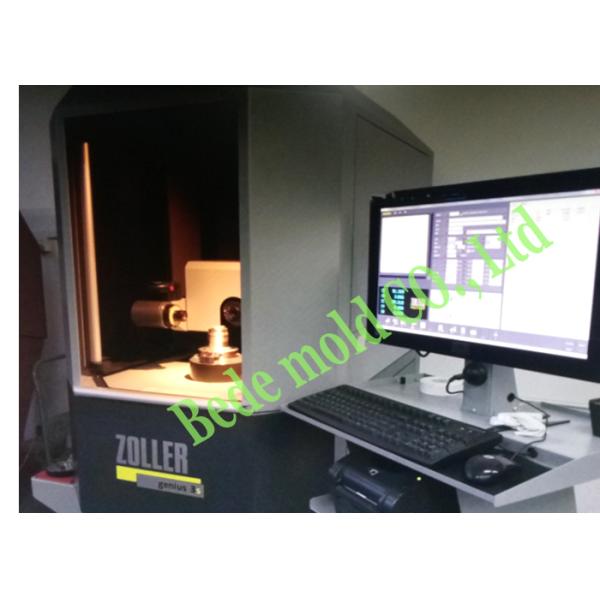

4,Multidimensional scanning equipment for quality control
Every product we produce is scanned by multi-dimensional instruments, and no defective product is allowed to appear in front of customers.
Packing and Shipping
Our products are packaged with plastic shell to protect the edges of cutters.
About the shipping, all the well-known express companies and ocean shipping can be selected, but in remote areas, we can only use EMS.
